Every 5 degrees from the WTCM site, done by Khanna and Guill going back to 1981 when WTCM moved to 580 and 1984 when they increased from 2.5 to 5 kW, and 1996, when they increased to 15 kW. This is filed with the FCC and is a government document available on line. It goes out (Measured (M) values) around 100-150 miles (161-242 km as on the study) in many directions until it hits a Great Lake.. The estimated values (E) are mainly from M-3 (8) and Canadian Conductivity (10) over the Great Lakes. Go to the PROPOSED WCCW study. The existing WCCW site was based entirely on M-3 (E).

There are almost no radial areas in NW Lower Michigan that exceed 4 mS/m, and those are rare. Most are between 1-3 mS/m. Other studies show areas as low as 0.1 mS/m

https://licensing.fcc.gov/cdbs/CDBS_Att ... &exhcnum=1


Is THAT where they got the idea for the 486-SX?

Same (x, y, z), different (t)

Your bullet missed my trial balloon.

RTN Price. Not guaranteed. As of 12:30, 157.71 Down 0.22.

Artificial Intelligence is a Child that needs a Parent to guide it through.

Rich F.
Posts: 48
Joined: Wed May 29, 2019 5:53 am
Location: Illinois USA
Contact:

Re: The Most Complete Single Conductivity Study Of Northwest And Northern Lower Michigan

Post by Rich F. » Sat Nov 14, 2020 2:15 am

See my post below...
Last edited by Rich F. on Sat Nov 14, 2020 2:55 am, edited 1 time in total.



Rich F.
Posts: 48
Joined: Wed May 29, 2019 5:53 am
Location: Illinois USA
Contact:

Re: The Most Complete Single Conductivity Study Of Northwest And Northern Lower Michigan

Post by Rich F. » Sat Nov 14, 2020 2:54 am

Apparently such studies show soil conductivity values in northern lower Michigan to be much less than those shown there on the FCC M3 map.

It is puzzling then how WJR, Detroit has produced a measured, daytime groundwave field intensity near the Straits of Michigan that is more consistent with the 8 mS/m conductivity value shown on the FCC M3 map for that entire path length than when including the conductivity data for parts of that path shown in the Khanna and Guill report for WTCM.



CK-722
Posts: 1284
Joined: Sun Dec 16, 2018 3:53 pm

Re: The Most Complete Single Conductivity Study Of Northwest And Northern Lower Michigan

Post by CK-722 » Sat Nov 14, 2020 4:24 am

As I recall, WJR was in the vicinity of 50 uV/m near the Straits when I measured it with an FI meter.

Also, I think we demonstrated that the conductivity near the TL is more important than the conductivity near the far end of the path.

In any event, the signals of Northern Michigan AMs has always been much less than similar facilities in low lying areas of SE Michigan. For example, 5 kw WWJ vs. WHAK and WHGR vs. WOIB...WLBY. And other AMs which gave up-WBMB 1060 WB and WATC...WSNQ 900 Gaylord had quite limited signals for their frequencies.


Is THAT where they got the idea for the 486-SX?

Same (x, y, z), different (t)

Your bullet missed my trial balloon.

RTN Price. Not guaranteed. As of 12:30, 157.71 Down 0.22.

Artificial Intelligence is a Child that needs a Parent to guide it through.

Rich F.
Posts: 48
Joined: Wed May 29, 2019 5:53 am
Location: Illinois USA
Contact:

Re: The Most Complete Single Conductivity Study Of Northwest And Northern Lower Michigan

Post by Rich F. » Sat Nov 14, 2020 6:38 am

CK-722 wrote:
Sat Nov 14, 2020 4:24 am
... In any event, the signals of Northern Michigan AMs has always been much less than similar facilities in low lying areas of SE Michigan. For example, 5 kw WWJ vs. WHAK ...
Do such conclusions consider antenna system "efficiency?" For example, WWJ using a 1/2-wave radiator would radiate about twice the groundwave ERP of WHAK using a 1/4-wave radiator — even though both stations used 5 kW transmitters.



CK-722
Posts: 1284
Joined: Sun Dec 16, 2018 3:53 pm

Re: The Most Complete Single Conductivity Study Of Northwest And Northern Lower Michigan

Post by CK-722 » Sat Nov 14, 2020 12:49 pm

WWJ 864 mV/m @ 1 km inverse field.
WHAK 695 mV/m @ 1 km inverse field.

So yes, some difference, but not enough to explain the difference.

Between the time that WWJ applied for 12 kW Day until they applied for 50 kW Day, they did a lot of conductivity measurements, including WHAK, and even had the late Glen Clark going out on a dinghy in Lake Erie to do FI measurements, according to "Colonel Flagg" here.

That was before they started putting applications on the FCC website in toto. Unless we had a friend that has a copy, we would have to pay outrageous amounts to have an agency copy it for us. Most of us here could afford it, but it's a matter of priorities.


Is THAT where they got the idea for the 486-SX?

Same (x, y, z), different (t)

Your bullet missed my trial balloon.

RTN Price. Not guaranteed. As of 12:30, 157.71 Down 0.22.

Artificial Intelligence is a Child that needs a Parent to guide it through.

innate-in-you
Posts: 550
Joined: Wed Oct 31, 2018 8:54 am

Re: The Most Complete Single Conductivity Study Of Northwest And Northern Lower Michigan

Post by innate-in-you » Mon Nov 16, 2020 4:52 pm

Interesting that page 2 proposes a frequency change from 1300 to 1310 for WOOD.

Obviously a typo, though listeners either WCCW or WOOD would still fade away before any interference would be noted by a common listener.

I've been suspecting for decades that the entire run of M-115 (Clare to Frankfort) has 0.1 mS/m conductivity.



Rich F.
Posts: 48
Joined: Wed May 29, 2019 5:53 am
Location: Illinois USA
Contact:

Re: The Most Complete Single Conductivity Study Of Northwest And Northern Lower Michigan

Post by Rich F. » Tue Nov 17, 2020 4:12 am

CK-722 wrote:
Sat Nov 14, 2020 4:24 am
As I recall, WJR was in the vicinity of 50 uV/m near the Straits when I measured it with an FI meter. ...

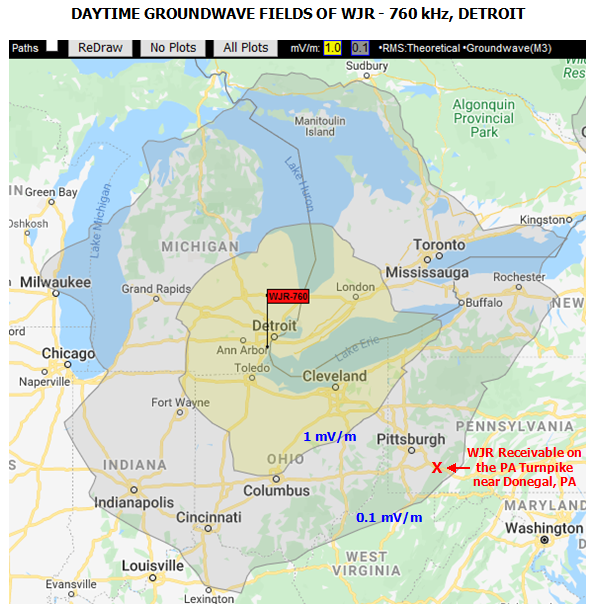

That is in fairly good agreement with the graphic below, which shows the daytime 1 mV/m and 0.1 mV/m calculated field contours of WJR, based on recent understandings of soil conductivities for various parts of that geographic area. The calculations include the effects of Earth curvature, and use the "Equivalent Distance" methodology of the FCC — where soil conductivity varied along each compass radial for those propagation paths.
